Sewage systems above 10,000 L/day leave the Building Code behind. Here's what an LSSDS is, who regulates it, and the hydrogeology behind getting one approved.

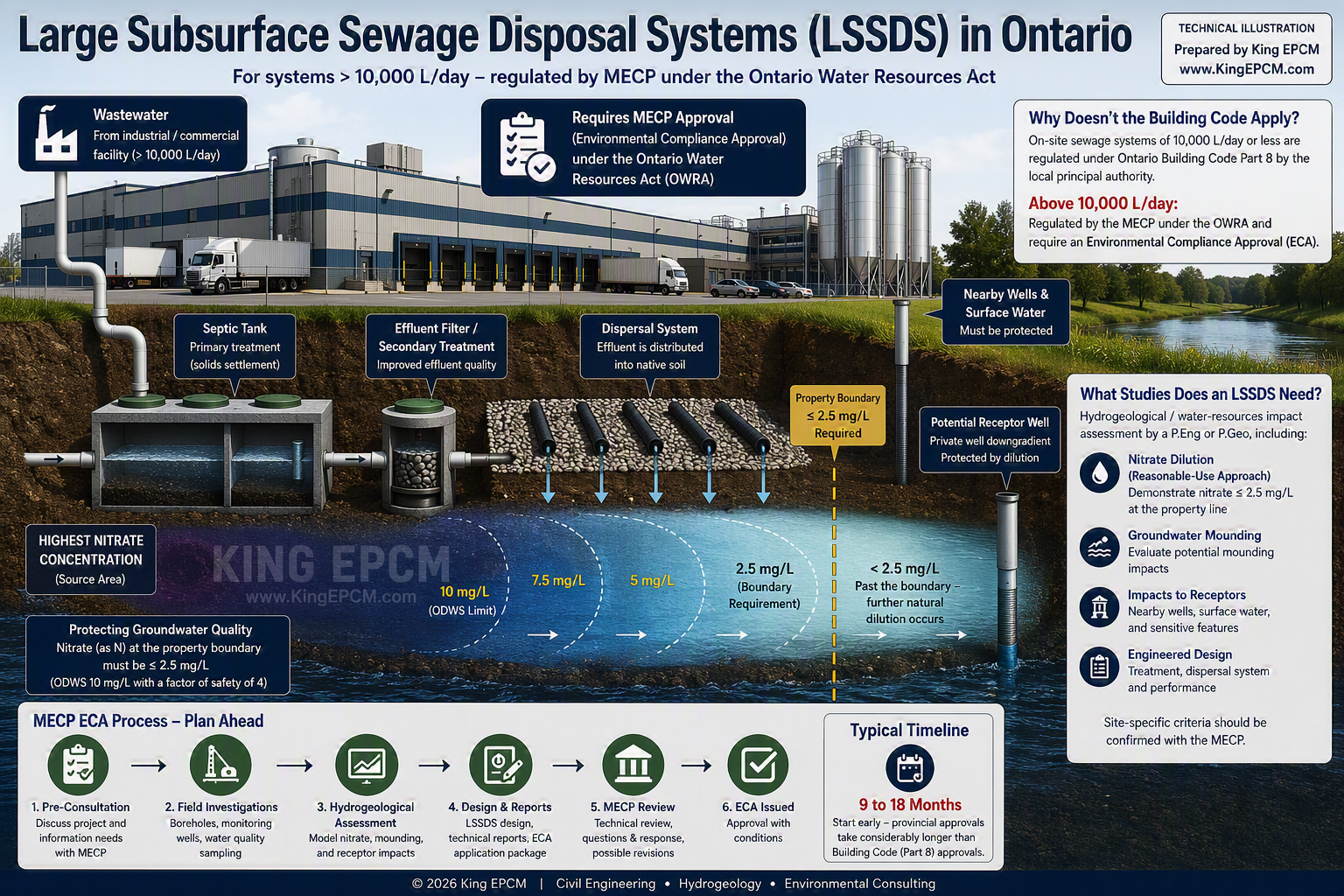

An LSSDS works like a residential septic system — a treatment tank followed by dispersal of effluent into the soil — but sized for a much larger flow, and treated as a piece of engineered infrastructure. The defining line is flow: a total daily design sanitary sewage flow greater than 10,000 L/day.
Above that threshold it is no longer regulated by the Ontario Building Code; it becomes a provincial responsibility of the Ministry of the Environment, Conservation and Parks (MECP), with the hydrogeology of the site — not just the soil at the bed — driving the design.
| 10,000 L/day or lessBuilding Code | More than 10,000 L/day (LSSDS)Provincial | |
|---|---|---|
| Governed by | Ontario Building Code, Part 8 | Ontario Water Resources Act (Section 53) |
| Approved by | Local principal authority (municipality, health unit, or conservation authority) | MECP — Environmental Compliance Approval (ECA) |
| Key studies | Site / soil evaluation and T-time | Hydrogeological + nitrate impact assessment, sealed by a P.Eng or P.Geo |
| Typical use | Homes and small buildings | Subdivisions, institutions, parks, and communal systems |
Because a large system puts a lot of effluent into the ground in one place, the ECA turns on a water-resources impact assessment. All potential pollutants must be evaluated against the Ontario Drinking Water Standard (ODWS) by the time the effluent reaches the property boundary, nearby wells, and surface water — but in practice nitrogen (nitrate) from septic discharge is usually the first to approach the ODWS limit of 10 mg/L.
A factor of safety of 4 is applied to that limit, giving a boundary-concentration requirement of about 2.5 mg/L at the property line — assessed alongside groundwater mounding and impacts on nearby wells and surface water.
Click a card to see how we help.
How we help
We size the communal system to the design flow, complete the nitrate and hydrogeological assessment, and prepare the MECP ECA application under the OWRA.
← BackHow we help
We confirm whether flows exceed the 10,000 L/day threshold, design the treatment and dispersal system, and secure the ECA so servicing doesn't stall the build.
← BackHow we help
We assess soils, groundwater, and land area, design a system that meets the nitrate limit at the boundary, and handle the ECA process end to end.
← BackA Large Subsurface Sewage Disposal System — a private, in-ground sewage system (tank treatment followed by dispersal of effluent into soil) with a total daily design sanitary sewage flow greater than 10,000 L/day.
On-site sewage systems of 10,000 L/day or less are regulated under Ontario Building Code Part 8 by the local principal authority. Above 10,000 L/day, the system is regulated by the MECP under the Ontario Water Resources Act and requires an Environmental Compliance Approval (ECA).
A hydrogeological / water-resources impact assessment prepared by a P.Eng or P.Geo — typically covering nitrate dilution (the reasonable-use approach), groundwater mounding, and impacts on nearby wells and surface water — together with the engineered system design.
All potential pollutants are evaluated against the Ontario Drinking Water Standard (ODWS), but nitrogen (nitrate) from septic discharge is usually the first to approach the ODWS limit of 10 mg/L. A factor of safety of 4 is applied, giving a boundary requirement of about 2.5 mg/L at the property line. Site-specific criteria should be confirmed with the MECP.
Generally about 9 to 18 months. Provincial ministry approvals take considerably longer than a local municipal Building Code (Part 8) application, so it's best to start the hydrogeological assessment and ECA process early.
Yes — hydrogeological and nitrate impact assessments, LSSDS design, and ECA applications, as part of our civil and hydrogeology work across Ontario.
General educational information only — not engineering advice for a specific property, and no substitute for the current regulations or the requirements of the conservation authority or approval body having jurisdiction. Standards, allowances, and criteria vary by watershed and authority; confirm for your site with a qualified professional.
