Building near a ravine or valley slope in the GTA? Here's how a slope stability assessment sets the stable top of slope — and the setback a conservation authority will accept.
Ravines and valley slopes across the GTA move over time — through erosion at the toe and slow, long-term instability. Before you build near one, a geotechnical slope stability assessment establishes where the ground is reliably stable, and sets the stable top of slope and the safe development setback from it.
It answers the question a conservation authority and building department both ask: is the proposed structure a safe distance from the slope, over the long term, with an adequate margin against failure?

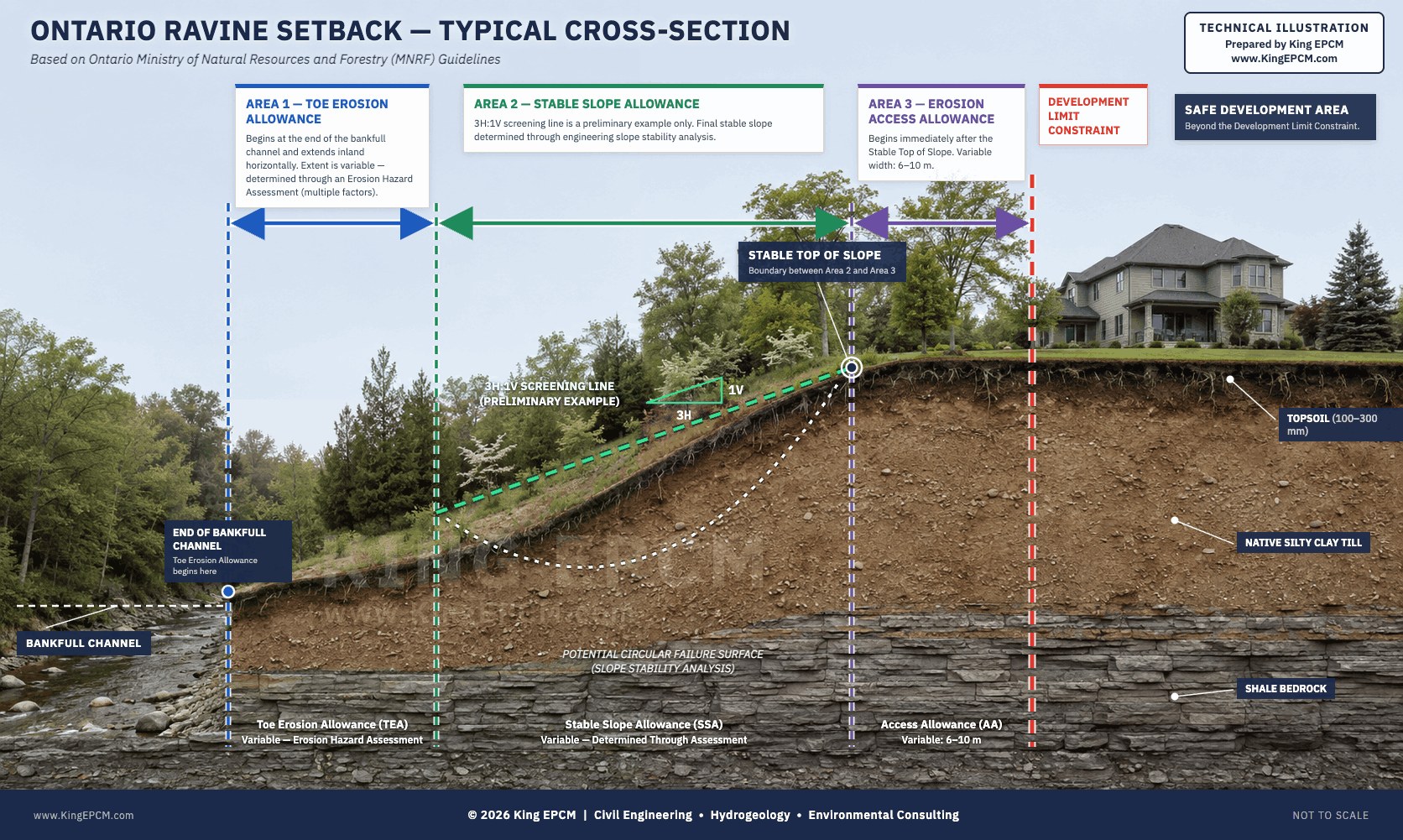

On a river or stream valley, the erosion hazard limit is built up from three allowances measured back from the slope. The development setback is taken from that limit.
| Component | What it accounts for |
|---|---|
| Toe erosion allowance | Horizontal erosion at the base of the slope caused by the watercourse (where a stream is present at the toe). |
| Stable slope allowance | The horizontal distance for a long-term stable slope. It can be set by the minimum setbacks in the MNR guidelines, by a fluvial geomorphology study, or by detailed computer modelling that finds the stable angle from the site's soil and groundwater conditions. A 3H:1V slope in soil is a common screening value where there is no active toe erosion. |
| Erosion access allowance | A further allowance for access, maintenance, and buffer — generally a minimum of 6 m for auxiliary (accessory) structures and 10 m for habitable structures. (The MNR guide specifies 6 m or as determined by a study; conservation authorities commonly require 10 m for dwellings.) |
The three combine into the erosion hazard limit; the conservation authority may apply additional setbacks. Exact values are site-specific and set by the reviewing authority.
Stability is assessed with a limit-equilibrium analysis that compares the forces resisting a slope failure to those driving it — the ratio is the factor of safety. A long-term static factor of safety of about 1.5 is the usual target; the analysis uses soil strengths and groundwater conditions from a site investigation (boreholes and, where needed, monitoring).
Because groundwater and weak layers control many slope failures, subsurface data — not just surface geometry — drive the result. The work typically includes a detailed topographic survey of the entire valley lands and slopes, and a detailed toe-erosion study where a watercourse sits at the base of the slope.
Click a card to see how we help.
How we help
We run a slope stability assessment to set the stable top-of-slope and the setback your structure needs — often recovering area a default screening would give away.
← BackHow we help
We prepare the geotechnical slope stability report the conservation authority expects, then respond to their comments so your permit clears review.
← BackHow we help
We assess the long-term stable top-of-slope for your ravine permit and coordinate the findings with your arborist and grading plans.
← BackA site-specific geotechnical study that determines the long-term stable slope, the stable top of slope, and the safe development setback from a valley, ravine, or stream slope, confirming an adequate factor of safety against sliding.
The limit is the erosion hazard limit — measured from the stable top of slope, plus an erosion access allowance: generally a minimum of 6 m for auxiliary (accessory) structures and 10 m for habitable structures. The exact setback is determined by geotechnical analysis, the applicable MNR guidelines, and the conservation authority, and varies by site.
For the long-term (drained), static condition, a minimum factor of safety of about 1.5 is the standard target in Ontario practice. Seismic / pseudo-static criteria differ and should be confirmed with the reviewing authority.
Conservation authorities (such as TRCA, Credit Valley, CLOCA, and LSRCA) under the Conservation Authorities Act and Ontario Regulation 41/24 (in force April 1, 2024). In the City of Toronto, the Ravine and Natural Feature Protection By-law also applies.
Yes — geotechnical slope stability analysis, stable-top-of-slope and setback determination, and the reports conservation authorities and municipalities require, across the GTA and Ontario.
General educational information only — not engineering advice for a specific property, and no substitute for the current regulations or the requirements of the conservation authority or approval body having jurisdiction. Standards, allowances, and criteria vary by watershed and authority; confirm for your site with a qualified professional.
